The drill rod break-out tong EasyBreak


Time-consuming and dangerous rod loosening in the target pit?
Pipe wrench approved by manufacturer for manual operation only is overloaded, bent or even broken off?
Use of a mini-excavator?
For this there is now the rod break-out tool EasyBreak.



MADE BY PRACTICIANS FOR PRACTICIANS


drill rod diameters

from 25 - 209 mm

BREAK-OUT / MAKE-UP torque

2.400 / 5.000 / 6.800 / 9.000 /18.800 / 32.000 Nm

optimal force transmission

through positive locking

quickest break-OUT TOOL

fulfils all common norms

narrowest break-OUT TOOL

no sudden loosening

of a connection

necessary for steering tools

simple follow-up

with ratchet function

very resilient

for rough jobsite applications

safe operation

when loosening the thread connection

no cross-section reduction

due to quick connector

1-Man-Operation,

no additional tools required

application with electric drill possible

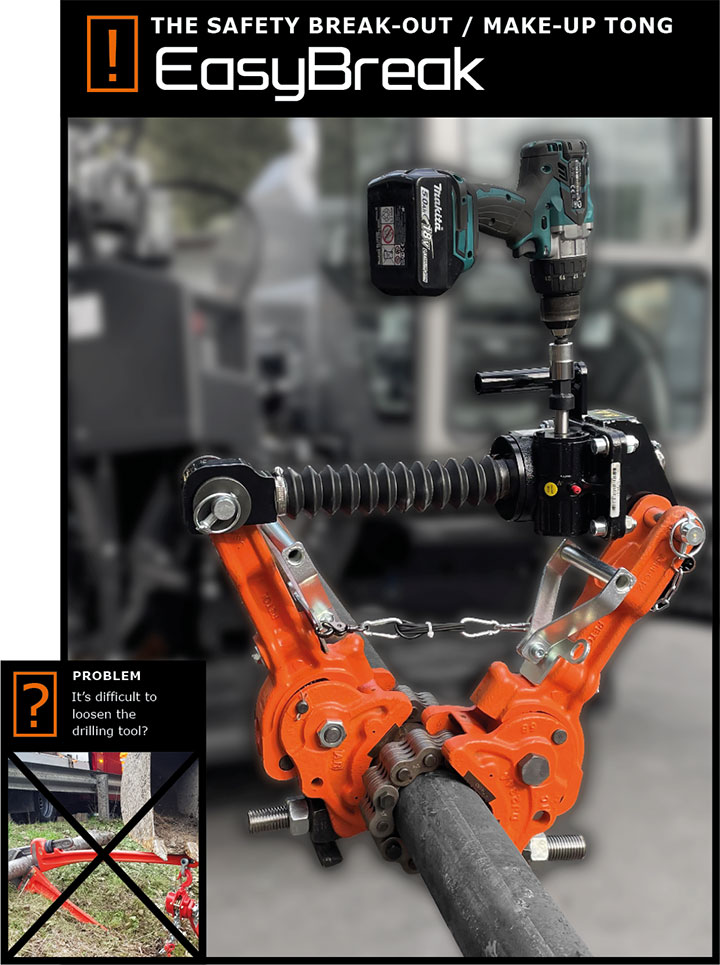

The drill rod break-OUT TOOL EasyBreak


Six sizes for rod diameters from 25 to 209 mm

EasyBreak 2

max. 2.400 Nm
Ø 25 - 65 mm
Tong width: 27 mm
Working width: 450 mm
Total weight: 10 kg

EasyBreak 5 RR

max. 5.000 Nm
Ø 25 - 75 mm
Tong width: 30 mm
Working width: 550 mm
Total weight: 12 kg

EasyBreak 7 GS

max. 6.800 Nm
Ø 25 - 83 (max. 152) mm
Tong width: 102 mm
Working width: 550 mm
max. single weight: 13 kg
Total weight: 33 kg

EasyBreak 9 LV

max. 9.000 Nm
Ø 45 - 90 mm
Tong width: 30 mm
Working width: 550 mm
max. single weight: 14 kg
Total weight: 33 kg

EasyBreak 19 GS

max. 18.800 Nm
Ø 54 -111 (max. 135) mm
Tong width: 113 mm
Working width: 550 mm
max. single weight: 18,5 kg
Total weight: 54 kg

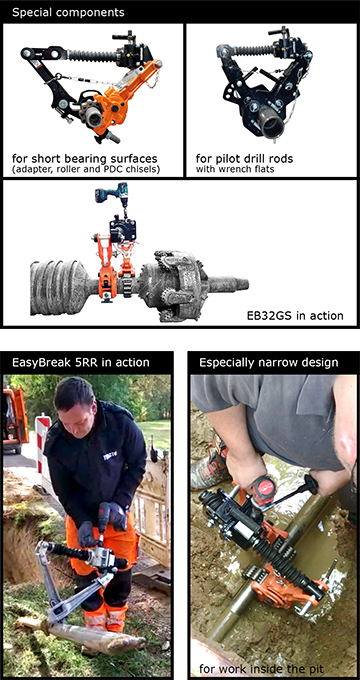

EasyBreak 32 GS

max. 32.000 Nm
Ø 76 - 209 mm
Tong width: 127 mm
Working width: 650 mm
max. single weight: 27,5 kg
Total weight: 75 kg

EasySpan L

For disassembly of PDC chisels
max. 17.000 Nm
Ø 98 - 120 mm
Tong width: 40 mm
Working width: 550 mm
max. single weight: 22 kg

VIDEO FILMS

Loosening a transmitter housing with EB 2 GS on Grundopit

Loosening a drill head on 25t Drill with EB 19 GS

Loosening a drill rod with EB 2 GS on Drill 4x

Loosening a backreamer with EB 19GS on 20t drill

Loosening a drill rod with EB 7 GS
